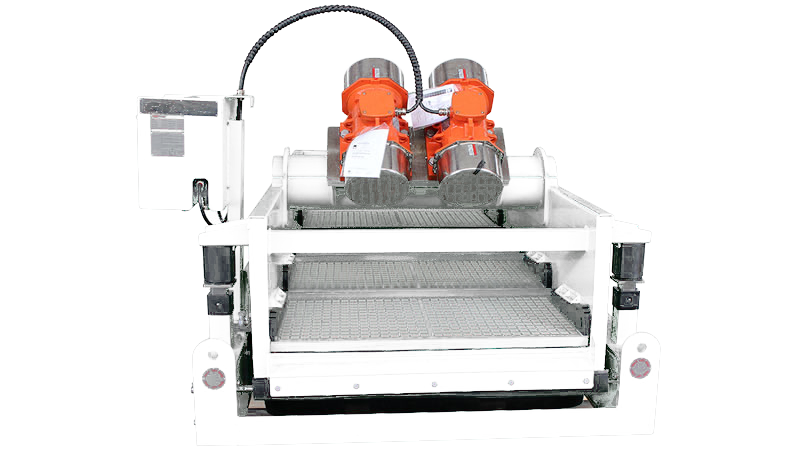

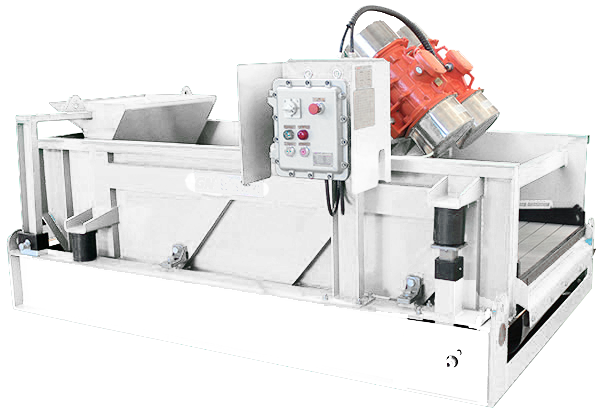

Shale Shaker is used for filtering mud from the drilling fluid with very important role. This is also called as solids control equipment in drilling mud system. And it's first step, the very beginning to deal with drilling fluid in the control system on the drilling rig.
Features of Shale Shaker
· With high-quality long-rod explosion-proof electrical motor.
· Compacted structure with install easily and work steady.
· High-G vibration, the vibration of a good, fast transport, through a good screen.
· Screen box could be operated easily by hand.
· High-performance rubber absorber, low noise.
· All fasteners are made of stainless steel, and key parts were covered by coating.
Specifications of Shale Shaker
|
Model |
KTDS101A-SDC |
KTDS102A-MCS |
KTDS102A-MWD |
KTDS103A-MBD |
KTDS104A-BVFH |
|
Vibration Mode |
Linear Motion |
||||
|
Capacity |
45m3/h(200GPM) |
120m3/h(528GPM) |
|
140m3/h(616GPM) |
|
|
Vibration Motor |
2×0.75Kw |
2×1.72Kw |
2×1.94Kw |
||
|
Screen Qty |
2pcs |
3pcs |
|
4pcs |
|
|
Screen Size: L×W |
750×900mm |
700×1250mm |
|
585×1165mm |
|
|
Screen Area |
1.35m2 |
2.63m2 |
|
2.73m2 |
|
|
Adjustable G Force |
≤7.1G |
≤7.5G |
≤8.0G |
||
|
Vibration Amplitude |
3.92~5.62mm |
4.14~5.96mm |
4.4~6.34mm |
||
|
Deck Angle Range |
+2° |
-1°~+5° (Adjustable) |
|
||
|
Feeding Type |
Box Feeder |
Weir Feeder |
Box Feeder |
Weir Feeder |
Hopper Feeder |
|
Weir Height |
710mm |
895mm |
1042mm |
895mm |
|
|
EX Standard |
ExdIIBt4 / IEC EX/ ATEX |
||||
|
Weight (Kg) |
893 |
1675 |
1742 |
1722 |
1638 |
|
Dimension: L×W×H(mm) |
1676×1689×1062 |
2717×1998×1428 |
2419×2055×1474 |
2937×1998×1428 |
2761×1998×1428 |
