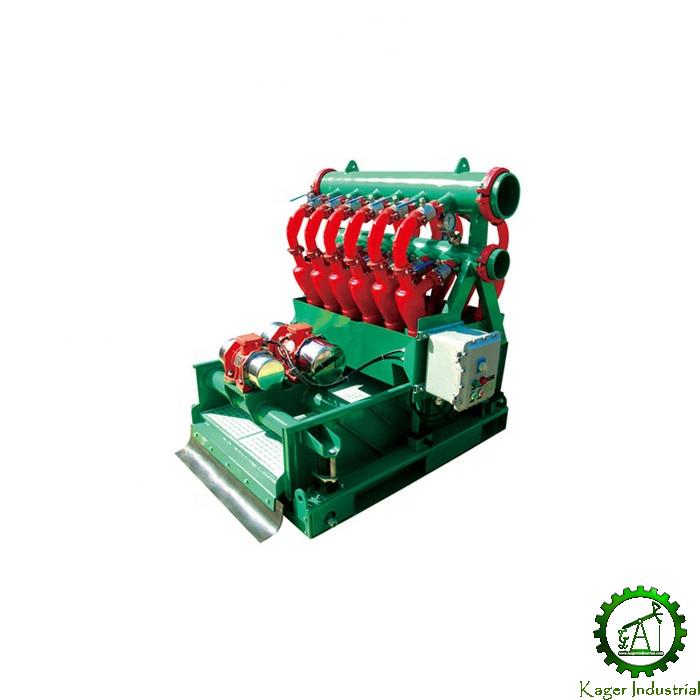

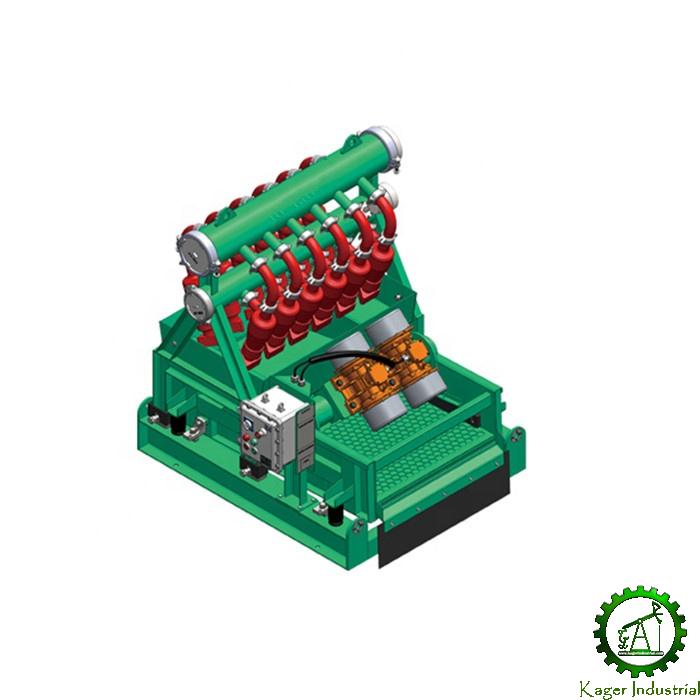

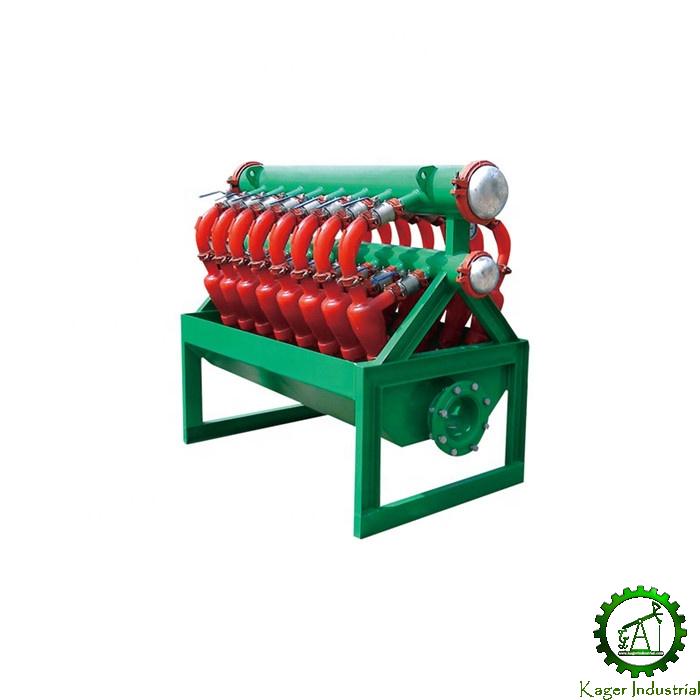

The Desilter is used for separating the solid-phase granules in the drilling fluid after treated by the shale shaker.
Mud separation system with Mud Desilter
Desilter is placed after desander but before Decanter Centrifuge. Desilter is also one type equipment to remove the solid particle in drilling mud through centrifugal force. Desander could remove the much fine solids than desander. During HDD and CBM mud system, the drilling mud after treated by desilter is clean enough for reuse. While in oil & gas drilling, there the mud still needs to be treated by a Decanter Centrifuge.
Models
Including 7 Models: KTDDT-91-8Q, KTDDT-91-12Q, KTDDT-92-3A8Q, KTDDT-92-3A12Q, KTDDT-93-16NF, KTDDT-94 -12NF, KTDDT-94 -16NF
Specifications
|
Model |
KTDDT-91-8Q/12Q |
KTDDT-92-3A8Q/3A12Q |
KTDDT-93-16NF |
KTDDT-94 -12NF/16NF |
|
Capacity |
120m3/h(528GPM) / 240m3/h(1056GPM) |
|
360m3/h(1584GPM) |
240/360m3/h |
|
Desilter Size |
4 Inch |
|
|
|
|
Desilter Qty |
8/12pcs |
|
16pcs |
12/16pcs |
|
Working Pressure |
0.25~0.4Mpa |
|
|
|
|
Feeding Size |
6 Inch |
|
|
|
|
Output Size |
8 Inch |
|
|
|
|
Bottom Shale Shaker Specs |
|
|
|
|
|
Shaker Model |
KTDS101A-SDC |
KTDS102A-MCS |
|
N/A |
|
Vibration Mode |
Linear Motion |
|
|
|
|
Vibration Motor |
2×0.75Kw |
2×1.72Kw |
|
|
|
Angle Adjust Motor |
N/A |
0.55Kw |
|
|
|
Screen Qty |
2pcs |
3pcs |
|
|
|
Screen Size: L×W |
750×900mm |
700×1250mm |
|
|
|
Screen Area |
1.35m2 |
2.63m2 |
|
|
|
Adjust G Force |
≤7.1G |
≤7.5G |
|
|
|
Vibration Amplitude |
3.92~5.62 |
4.14~5.96 |
|
|
|
Deck Angle Range |
+2° |
-1°~+5° (Eletric & Mechanical) |
|
|
|
EX Standard |
ExdIIBt4 / IEC EX/ ATEX |
|
|
|
|
Weight (Kg) |
1057/1097 |
1846/1886 |
2016 |
504/539 |
|
Dimension (mm) |
1674×1707×1719 |
2419×2113×1608 |
2419×2113×2126 |
2193×900×1511 |
